Views: 0 Author: Site Editor Publish Time: 2022-06-09 Origin: Site
Features: The whole production line with simple process, small floor space. The equipments have high degree of automation, with high production efficiency and output. The finished particles have good shape with proper grade. It can meet the requirements of variety of the aggregates used in the field of construction industry.
Crushing Process

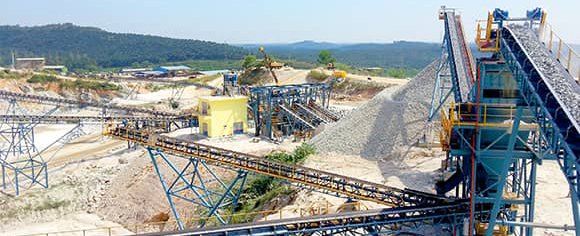

This system is applied for the granite (basalt) aggregates production with the production capacity of 800t/h. the process flow is vibrating feeder – jaw crusher – cone crusher – vibrating screen – sand washer.

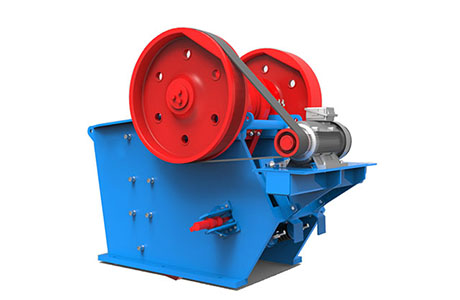

JC series jaw crusher GPY cone crusher

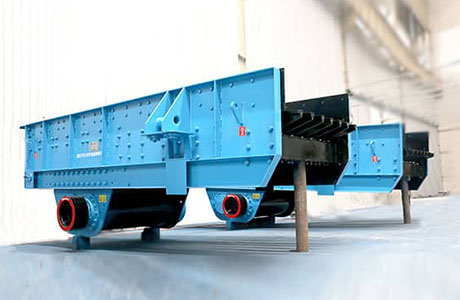

Grizzly Feeder Vibrating Screen
Vibrating Screen Sand Washer
800t/h - Granite (Basalt) Production Configuration Table
No. | Equipment | Model | Unit | Quantity | Power(kw) | Total Power(kw) | Output(t/h) | Weight(kg) | Remark |
G1 | Grizzly Feeder | ZSW600x180 | pc | 1 | 45 | 45 | 400-1000 | 13500 | |
P1 | Jaw Crusher | JC140 | pc | 1 | 200 | 200 | 470-985 | ||
G2 | Vibrating Feeder | ZG400 | pc | 3 | 2x2.0 | 12 | -400 | ||
G3 | Vibrating Feeder | ZG400 | pc | 2 | 2x2.0 | 8 | -400 | ||
P2 | Cone Crusher | GPY500S | pc | 1 | 315 | 315 | 295-1200 | 45000 | |
P3 | Cone Crusher | HPY500 | pc | 2 | 400 | 800 | 135-770 | 42500 | |
S1 | Vibrating Screen | 3YK3073 | pc | 2 | 2x37 | 148 | 150-900 | 22500 | |
XL1 | Sand Washer | XL914 | pc | 2 | 15 | 30 | -100 | 6370 | wet method |
C1 | Iron Separator | pc | 1 | ||||||
G4 | Vibrating Feeder | ZG200 | pc | 2 | 2×0.75 | 3 | -200 | ||
P4 | Sand Making Machine | PLS-1200 | pc | 2 | 500-630 | 1000-1260 | 300-715 | 19690 | |
S2 | Vibrating Screen | 2YK2475 | pc | 2 | 45 | 90 | 150-900 | 13924 | |
XL2 | Sand Washer | XL1118 | pc | 2 | 22 | 44 | -175 | 12703 | wet method |
C2 | Iron Separator | pc | 1 |
1000t/h - Granite (Basalt) Production Configuration Table
No. | Equipment | Model | Unit | Quantity | Power(kw) | Total Power(kw) | Output(t/h) | Weight(kg) | Remark |
G1 | Grizzly Feeder | ZSW600x210 | pc | 1 | 45 | 45 | 550-1250 | 14791 | |
P1 | Jaw Crusher | JC160 | pc | 1 | 250 | 250 | 640-1200 | ||
G2 | Vibrating Feeder | ZG400 | pc | 3 | 2X2.0 | 12 | -400 | ||
G3 | Vibrating Feeder | ZG500 | pc | 3 | 2×2.5 | 15 | -500 | ||
P2 | Cone Crusher | GPY500S | pc | 1 | 315 | 315 | 295-1200 | 45000 | |
P3 | Cone Crusher | HPY500 | pc | 3 | 400 | 1200 | 135-770 | 42500 | |
S1 | Vibrating Screen | 3YK2460 | pc | 4 | 45 | 180 | 120-880 | 11046 | |
XL1 | Sand Washer | XL9114 | pc | 2 | 15 | 30 | -100 | 6370 | wet method |
C1 | Iron Separator | pc | 1 | ||||||
G4 | Vibrating Feeder | ZG200 | pc | 2 | 2×0.75 | 3 | -200 | ||
P4 | Sand Making Machine | PLS-1200 | pc | 2 | 500-630 | 1000-1260 | 300-715 | 19690 | |
S2 | Vibrating Screen | 2YK3073 | pc | 2 | 55 | 110 | 150-900 | 15476 | |
XL2 | Sand Washer | 2XL914 | pc | 2 | 2X15 | 60 | -200 | 11300 | wet method |
C2 | Iron Separator | pc | 1 |

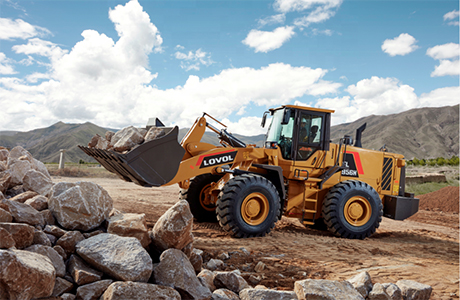

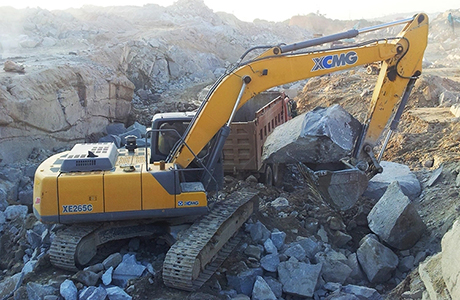

Wheel Loader Crawler Excavator

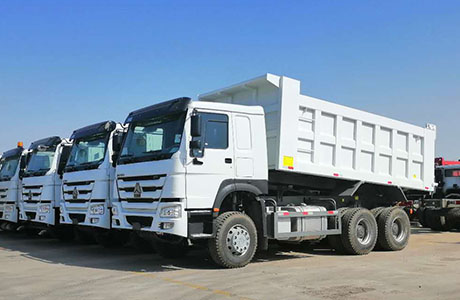

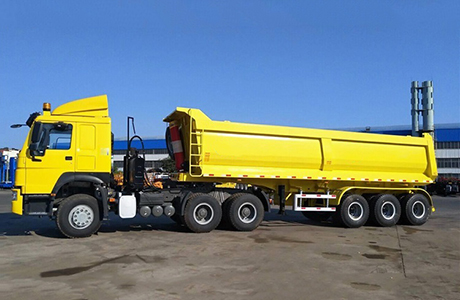

Dump Truck Tipper Semi Trailer

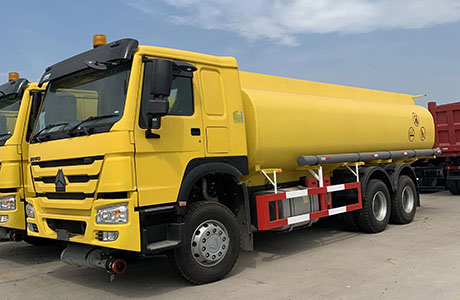

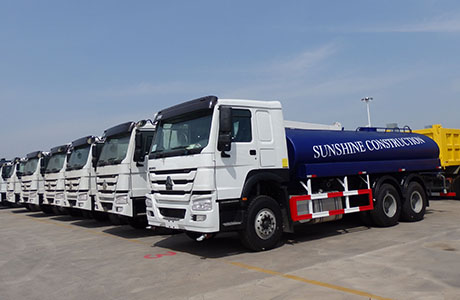

Water Tank Truck Fuel Tank Truck

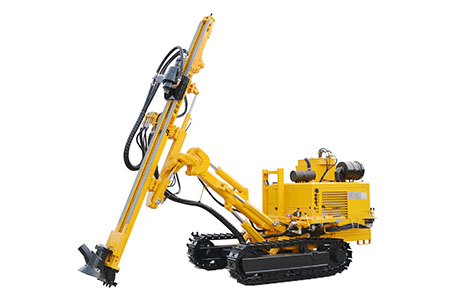

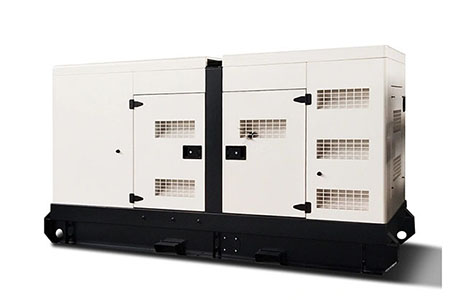

Automatic Crawler Mounted DTH Drilling Rig Diesel Generator Set
